Steel is the structural backbone of every vessel, and in many cases, of the industrial equipment and facilities we work on as well. Its condition determines not only whether a structure passes survey, but whether it can safely withstand the mechanical stresses, sea states, and operational loads it’s exposed to day after day. When steel begins to wear, corrode, or thin beyond acceptable limits, the consequences aren’t cosmetic — they’re structural, and left unaddressed, they can compromise the safety of the entire vessel or system.

Why Steel Deteriorates

Marine environments are inherently harsh on steel. Constant exposure to saltwater, humidity, and temperature fluctuation accelerates corrosion, even where protective coatings are applied and maintained. Mechanical wear from cargo operations, vibration, and repeated loading adds a second layer of stress, particularly in high-traffic areas like decks, ballast tanks, and hull plating near the waterline. Over time, these combined factors cause wastage — a gradual thinning of steel thickness that, if it progresses far enough, no longer meets the structural strength required by classification societies.

Industrial equipment and facility structures face a related but distinct set of challenges: exposure to process chemicals, repeated thermal cycling, and the mechanical stress of heavy machinery operating nearby. In both marine and industrial contexts, the underlying principle is the same — steel that isn’t monitored and renewed when necessary eventually becomes a liability rather than a structural asset.

What Our Steel Renewal Service Involves

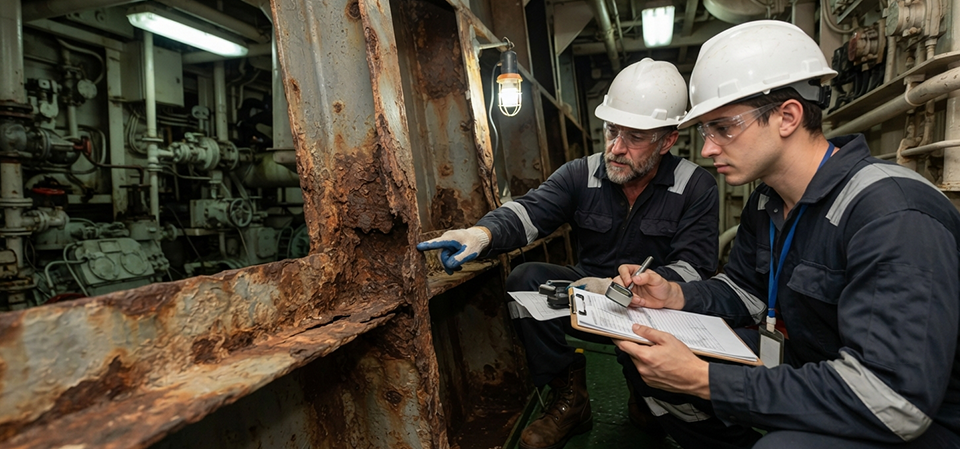

Our steel renewal process begins with a thorough inspection to identify areas of wastage, corrosion, or mechanical damage. This typically involves visual assessment combined with thickness gauging, allowing our team to map precisely which sections require attention and which remain within acceptable tolerance. From there, we plan the renewal sequence carefully — cropping out affected sections, fabricating replacement plating or structural members to the correct specification, and welding new steel into place following procedures that meet classification society and client requirements.

Quality control doesn’t end once welding is complete. We carry out weld inspection, and where required, non-destructive testing to confirm the integrity of renewed sections before final coating and handover. Throughout the process, we work closely with class surveyors, ensuring that renewed areas are documented and inspected in a way that avoids delays or disputes during survey.

Afloat Versus Dry-Docked Steel Renewal

One of the advantages of working with an experienced afloat repair provider is that a significant portion of steel renewal work can often be carried out without requiring a full dry-docking. Localized renewal — particularly above the waterline or in accessible internal structures — can frequently be completed while the vessel remains in the water, minimizing disruption to the owner’s operating schedule. Larger-scale renewal programs, particularly those affecting underwater hull plating, may still require dry-docking, but even in these cases, careful planning and prefabrication work completed in advance can significantly reduce the time a vessel spends out of service.

Common Areas Requiring Steel Renewal

Certain areas of a vessel or industrial structure tend to require renewal more frequently than others, based on their exposure to the factors described above. Ballast tanks, due to constant exposure to seawater and limited ventilation, are common candidates for renewal. Deck plating exposed to cargo handling and weather sees accelerated wear in high-traffic areas. Hull plating near the waterline experiences the compounded effects of wave action, temperature cycling, and marine growth. In industrial settings, structural supports for heavy machinery and process piping runs exposed to corrosive substances often show the earliest signs of wastage.

Why Timing Matters

Steel renewal is one of the clearest examples in marine and industrial maintenance where timing directly affects cost. A section of plating identified early, while wastage is still moderate, typically requires a smaller renewal area and less extensive rework of surrounding structure. The same section, left unaddressed until wastage progresses further, often requires a larger renewal scope, additional structural reinforcement, and in some cases, more invasive access work to reach the affected area safely. Regular inspection and a willingness to act on findings promptly is consistently the more cost-effective approach over the life of a vessel or facility.

Our Commitment to Quality on Every Renewal

Every steel renewal project we undertake is carried out under our ISO 9001:2008 certified quality management system, meaning the process — from initial inspection through final documentation — follows a consistent, auditable standard rather than varying based on which team is assigned. Our welders and fabricators bring experience gained at major Arabian Gulf shipyards, giving them direct familiarity with the workmanship standards that classification societies expect to see, and reducing the likelihood of rework or delays during survey.

Documentation and Traceability

Every steel renewal project we complete is accompanied by proper documentation — material certificates for new plating, weld procedure records, and inspection reports that give owners a clear, auditable history of the work performed. This documentation matters not only for the immediate survey process but for the vessel’s ongoing maintenance record, giving future surveyors and repair providers accurate information about what’s been renewed and when, rather than relying on incomplete or informal records that can complicate future assessments.

Balancing Renewal Scope Against Operational Constraints

Every steel renewal project involves a practical balance between addressing the full extent of identified wastage and working within the operational constraints an owner is facing — a sailing schedule that can’t be delayed indefinitely, a budget that needs to be respected, or a survey deadline that’s approaching. Our engineering team works with clients to prioritize renewal scope sensibly when constraints require it, addressing the most structurally significant areas first while developing a realistic plan for any remaining work that can be safely deferred to a later, more convenient window without compromising safety.

In Conclusion

Steel renewal isn’t simply about patching a worn section — it’s about restoring the structural integrity that everything else on board or on site depends on. Whether the requirement is a small localized repair or a larger renewal program identified during survey, our team approaches every project with the same combination of technical precision, classification society familiarity, and scheduling awareness that has made this one of our core, most requested services since 2012.
